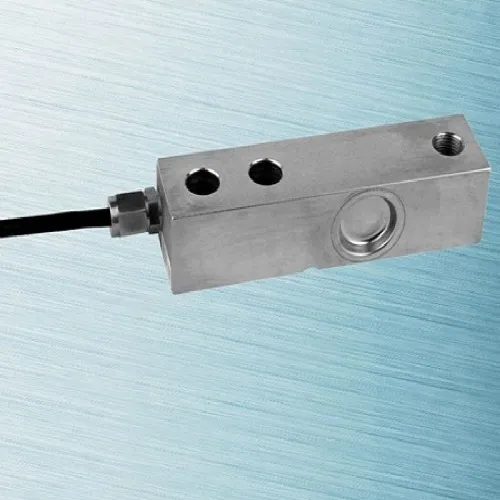

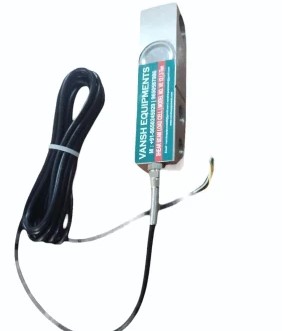

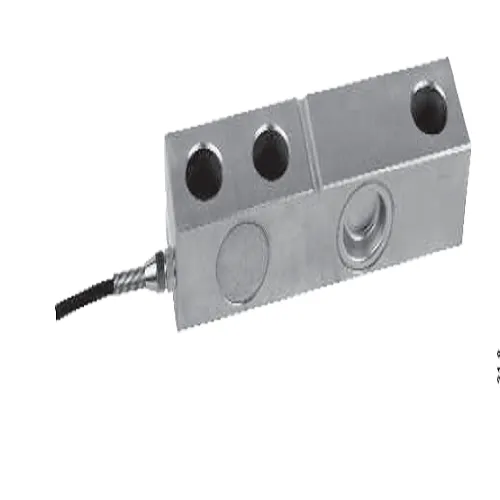

Single Ended Shear Beam Load Cell
Single Ended Shear Beam Load Cell
₹ 5,000 / Piece
| Load Capacity | 1000 kg |
| Type | Single Ended Shear Beam |
| Brand | ADI |
| Material | Stainless Steel |
| Ingress Protection | IP68 |
| Application | Pallet Truck Scales |
| Model | SQB |
| Capacity | 3 – 10 Ton |
| Features | Low Profile |
| Load Cell Certifications | OIML |
| Output Sensitivity (FS) | 3.0 ± 0.003 mV/V |
| Combined Error | ≤ ± 0.02 |
| Creep Error (30 minutes) | ≤ ± 0.02 |
| Accuracy Class | OIML R60 C3 |
| Temperature Effect on Zero | ≤ ± 0.02 |
| Temperature Effect on Output | ≤ ± 0.02 |
| Zero Balance | ± 1% FS |
| Maximum Safe Overload | 150% FS |
| Ultimate Safe Overload | 180% FS |
| Recommended Excitation Voltage | 10 to 12V DC |
| Maximum Excitation Voltage | 15V DC |
| Input Resistance | 400 ± 20 Ohm |
| Output Resistance | 352 ± 3 Ohm |
| Insulation Resistance at 50V DC | ≥ 5000 M Ohm |
| Compensated Temperature Range | -10 to +40 °C |
| Operating Temperature Range | -30 to +70 °C |
| Load Cell Intervals (nLC) / Divisions | 6000, 4000, 3000, 5000 |
| Cable Length | 5 Meter |
